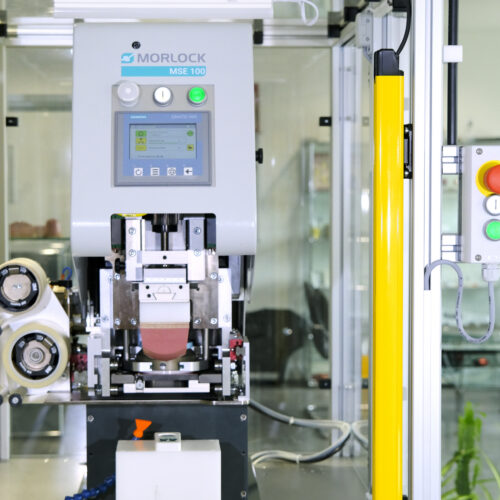

MSE Innovative Electromechanical Pad Printer

The Future of Pad Printing: Reliability, Durability Combined with Cost and Time Savings

For years the Morlock MSE Innovative Electromechanical Pad Printer was admired worldwide for its reliability and durability at high speed.

New patented, innovative features allow the new  Morlock SealCup Express to combine market-leading reliability and durability with unprecedented cost and time savings.

The best features from leading German (Morlock) and North American (Trans Tech) pad printers have been brought together to bring an industry favorite into the future.

Demonstration of Morlock SealCup Pad print decoration on the raised surface of a medical electrical plug

Features

Market-Leading Reliability

Less downtime than alternative pad printers

Smart German design & solid industrial construction

Market-Leading Durability

Longer lifespan than alternative systems

Thick steel clichés & industrial construction

Unprecedented Time Savings

Fast pad changes

Tool-less pad changes & super fast ink changes result in time savings compared to alternative pad printers

100% Integrated Safety Features

CE-Compliant System Design & Controls

Designed with integrated safety modules and CE components that interface with safety guard packages

High Impact Decoration

2-Color Option

Two color decoration from a single electromechanical system

Space Savings

Right- and Left-Hand Design Options

Two pad printers can print side by side in reduced space- making it possible to eliminate 2 stations on a dial system or decreasing the length of a linear system by 155 mm.

Additional Features



  • Integration Module (space and weight savings)
  • Master/Slave Control Function

  • Ready for integration with higher level control systems
  • Ready for integrated digital networks big data (Industry 4.0)
  • Modem access for remote assistance

Would you like to learn more about the MSE equipment?
Technical Specifications
Cycle Speed

Up to 3600 cycles/hour

Drive

Electromechanical

Max Pad Compression

1080 N (242 lbs)

Pad Stroke Adjustment

+/- 10mm

Plate/Cliché Size

100 x 215 mm

Ink Cup

Mechanical or Magnetic

Ink Cup Size

90 mm

Maximum Print Size

80 mm

Voltage

Single Phase 230 V 50/60 Hz

Control Voltage

24 V

Power Consumption

app. 500 W

Controls

Siemens PLC with Touchscreen User Interface

Number of Recipes

20

Machine Dimensions (W x L x H)

325x850x810 mm (without pad cleaning) 480x850x810 mm (with pad cleaning)

Weight

app. 140 kg (300 lbs)

Languages

German, English (additional languages on request)

Safety

OHSA compliant light barriers

Product Comparison
MSE Innovative Electromechanical Pad Printer MPE
Cycle Speed Up to 3600 cycles/hour Up to 1200 cycles/hour
Drive Electromechanical Pneumatic
Max Compression 1080 N 1080 N (242 lbs)
Pad Stroke Adjustment +/- 10mm +/- 10mm
Ink Cup Mechanical or Magnetic Mechanical or Magnetic
Ink Cup Size 90 mm 90 mm
Weight app. 140 kg (300 lbs) app. 60 kg (130 lbs) - head only
Maximum Print Size 80 mm 80 mm
Number of Recipes 20 20
Machine Dimensions (W x L x H) 325x850x810 mm (without pad cleaning) 480x850x810 mm (with pad cleaning) 250x880x655 mm (without pad cleaning) 430x880x655 mm (with pad cleaning)
Air Consumption N/A Max. 6.5 NL / 6 bar
